Specifications
Specifications
- High height
- 16.75 in
- Interchangeable saddle
- No
- Load capacity
- 55 Tons @ 116-174 PSI
- Long benefits
-
- Ideal for class 8 truck, farm equipment, and fleet maintenance.

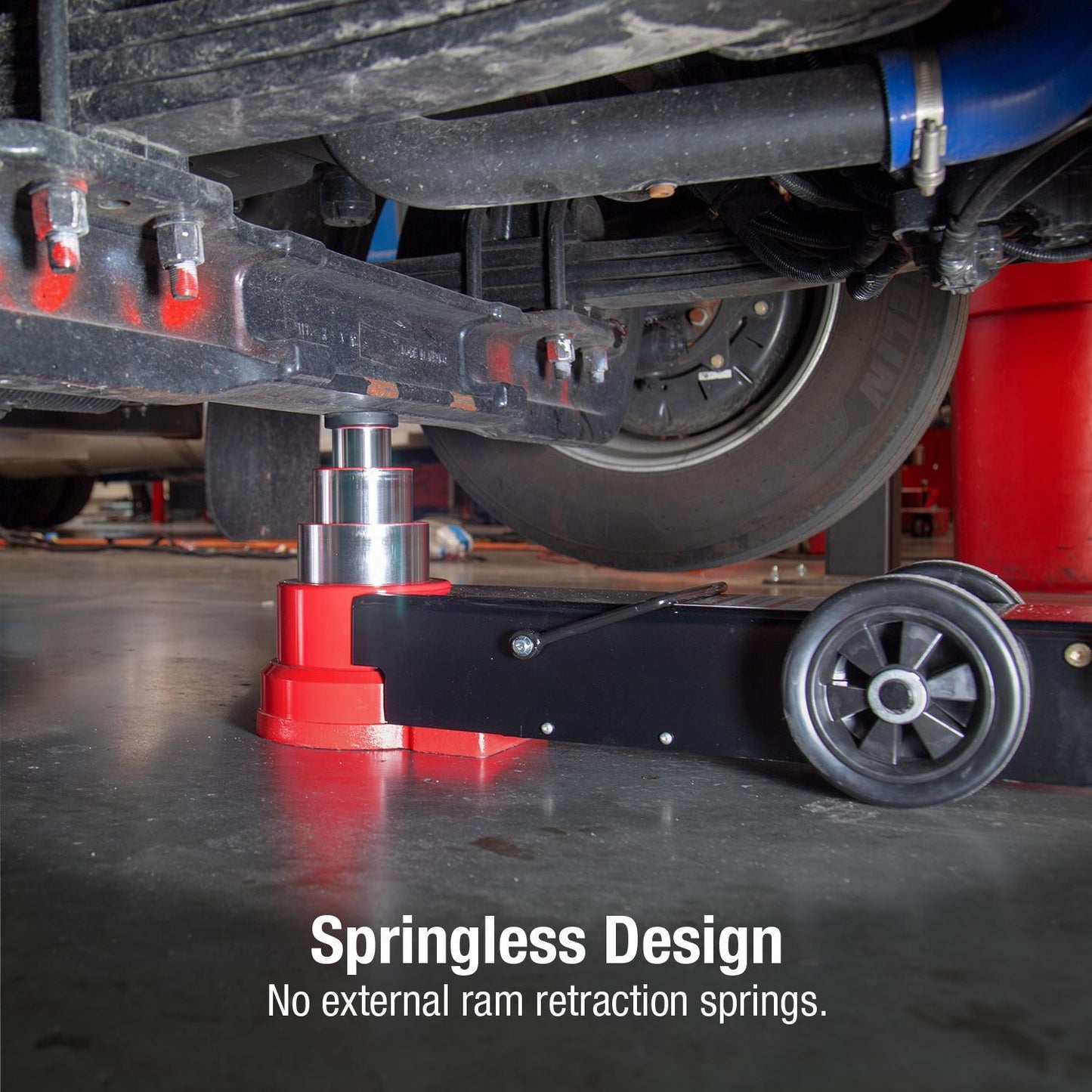

- Springless design lifts efficently by eliminating downward force of springs.

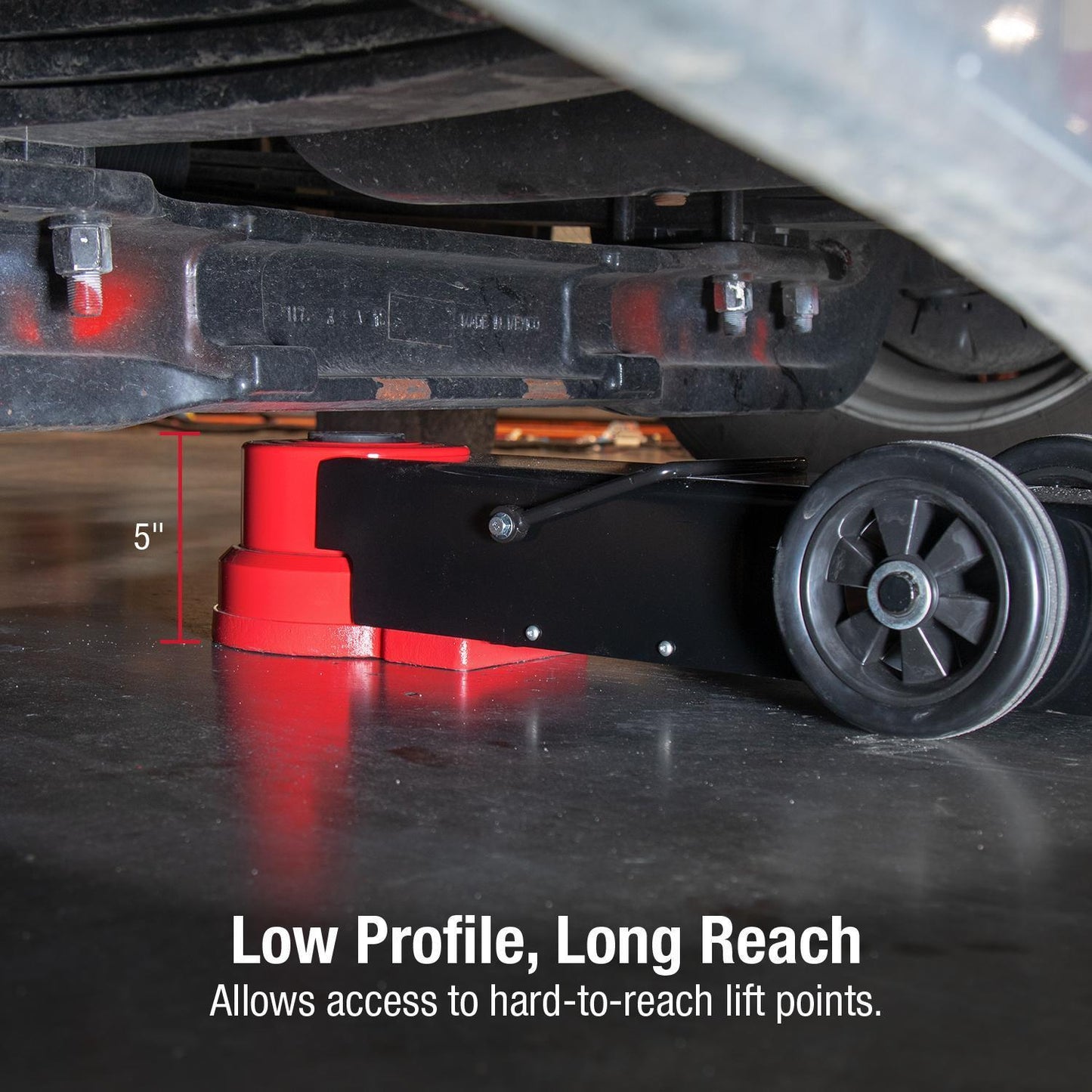

- Low profile long reach jack allows access to hard to reach lift points.

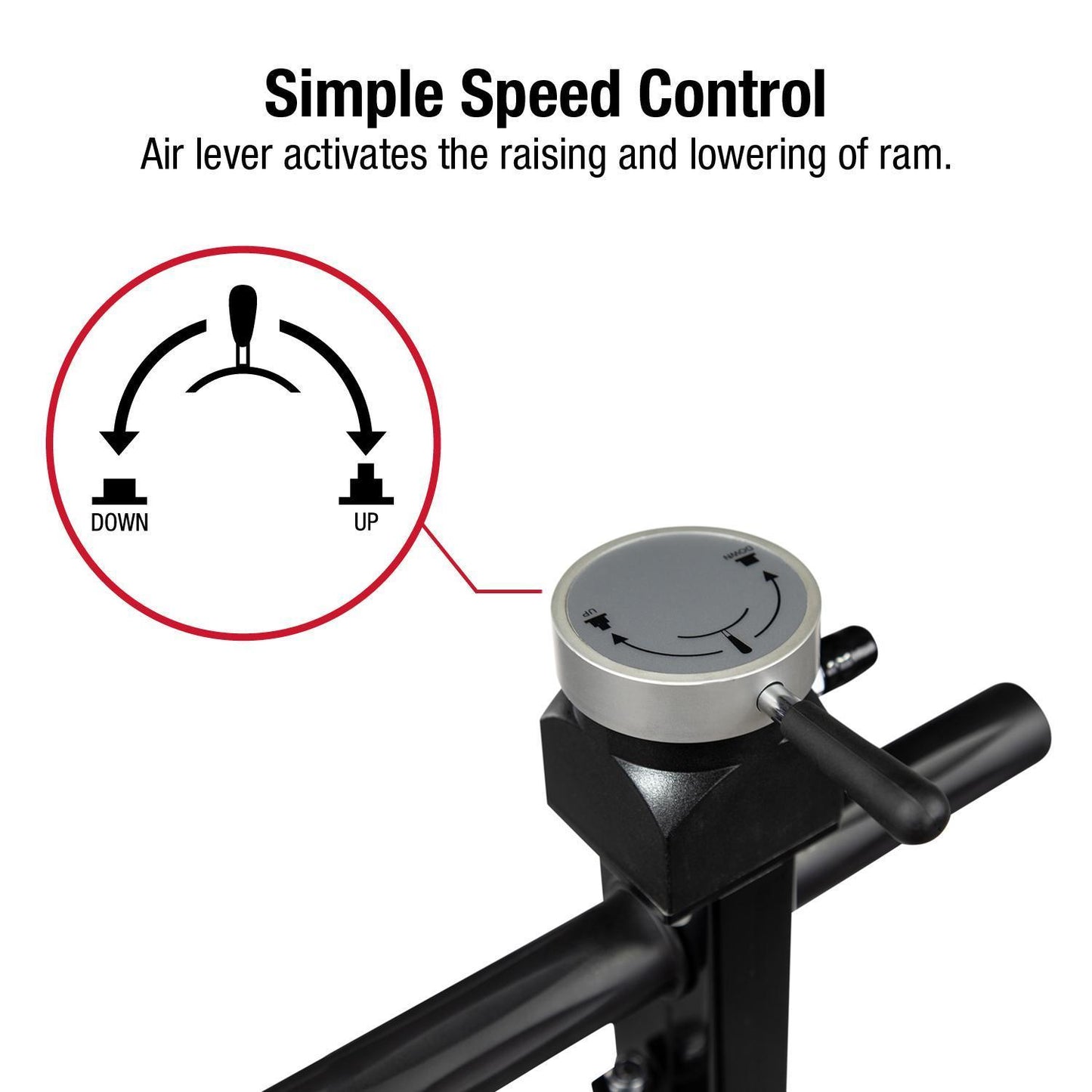

- Full air actuation raises and lowers the ram with simple turn of variable speed control knob.
- Spring less ram design eliminates weathering, rusting, and damage of spring and spring retainers.
- High quality seals and components provide durable long life.
- Flash chromed ram is rust prohibitive for smooth operation and protection against weathering.
- Low height
- 5.9 in
- Product description long
-
- Our full line of lifting equipment includes jacks, hoists, stands, and engine supports; virtually any kind of lifting equipment, for any application. Whether it’s our industry-leading safety standards, innovative designs or no hassle warranties, SUNEX® Lifting Equipment cuts no corners. Uncompromised Safety Standards: We put all of our lifting equipment through a voluntary and rigorous safety certification process, as outlined by the ASME PASE-2019 Safety Standard for Portable Automotive Service Equipment. This makes SUNEX® stand out as a company that considers workplace safety to be a top priority. Engineering Innovation: Low-profile designs and quick-lift technology keep your shop running faster and more efficiently.
- Set includes
-
- Capacity (Tons): 55 @116-174 PSI
- Low Height (in.): 5.9
- Ram Travel (in.): 6

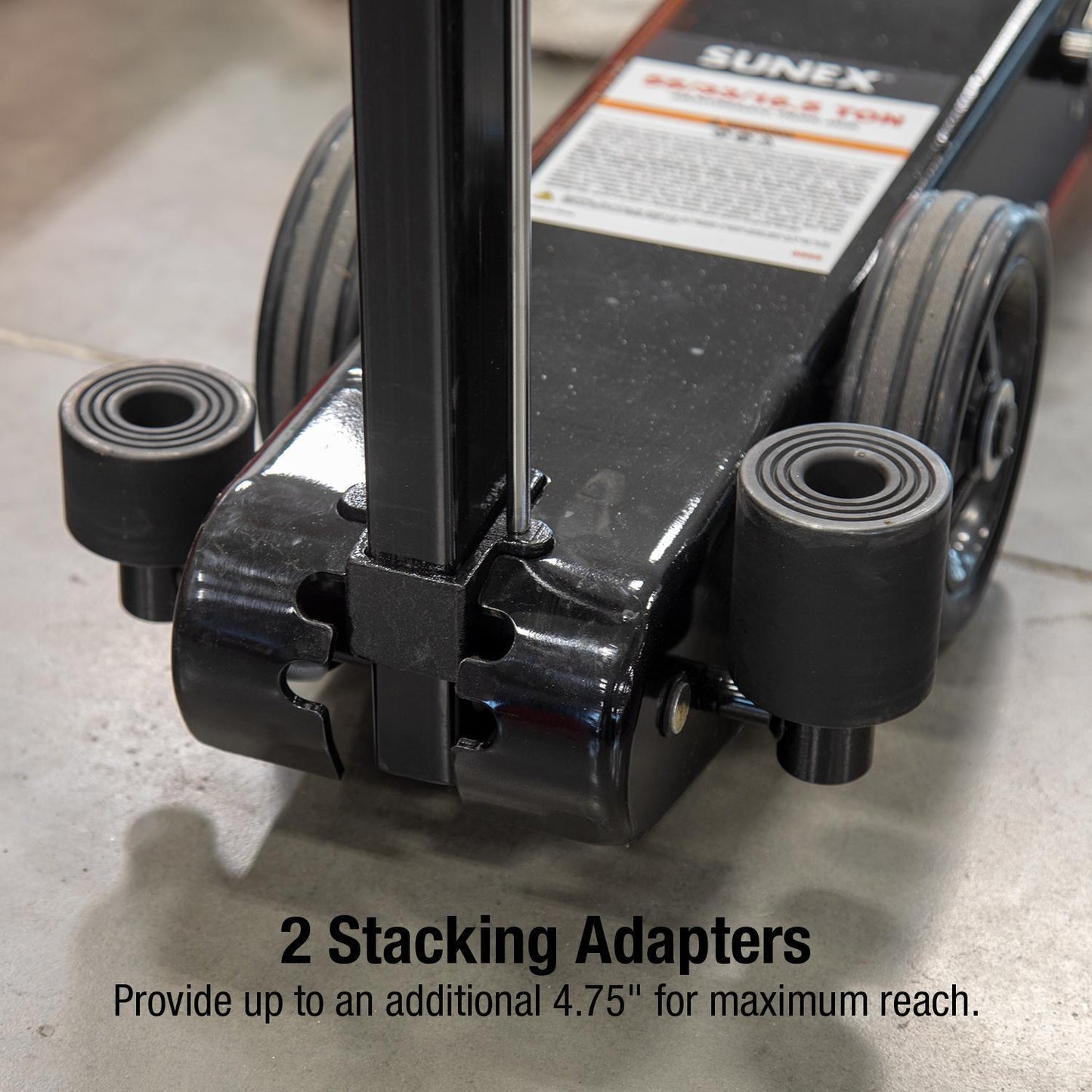

- Max Height with Adapter (in.): 16.75
- Overall Width (in.): 12
- Wheel Diameter (in.): 6.25
- Saddle Diameter (in.): 2.75
- Handle Length (in.): 50.75
- Shipping Weight (lbs): 146
- Upc
- 613364190807
