1000-POUND AIR AND HYDRAULIC TELESCOPIC TRANSMISSION JACK

1000-POUND AIR AND HYDRAULIC TELESCOPIC TRANSMISSION JACK

Model: 7796

  • Capacity: 1,000 lb. load capacity supports transmission removal and installation

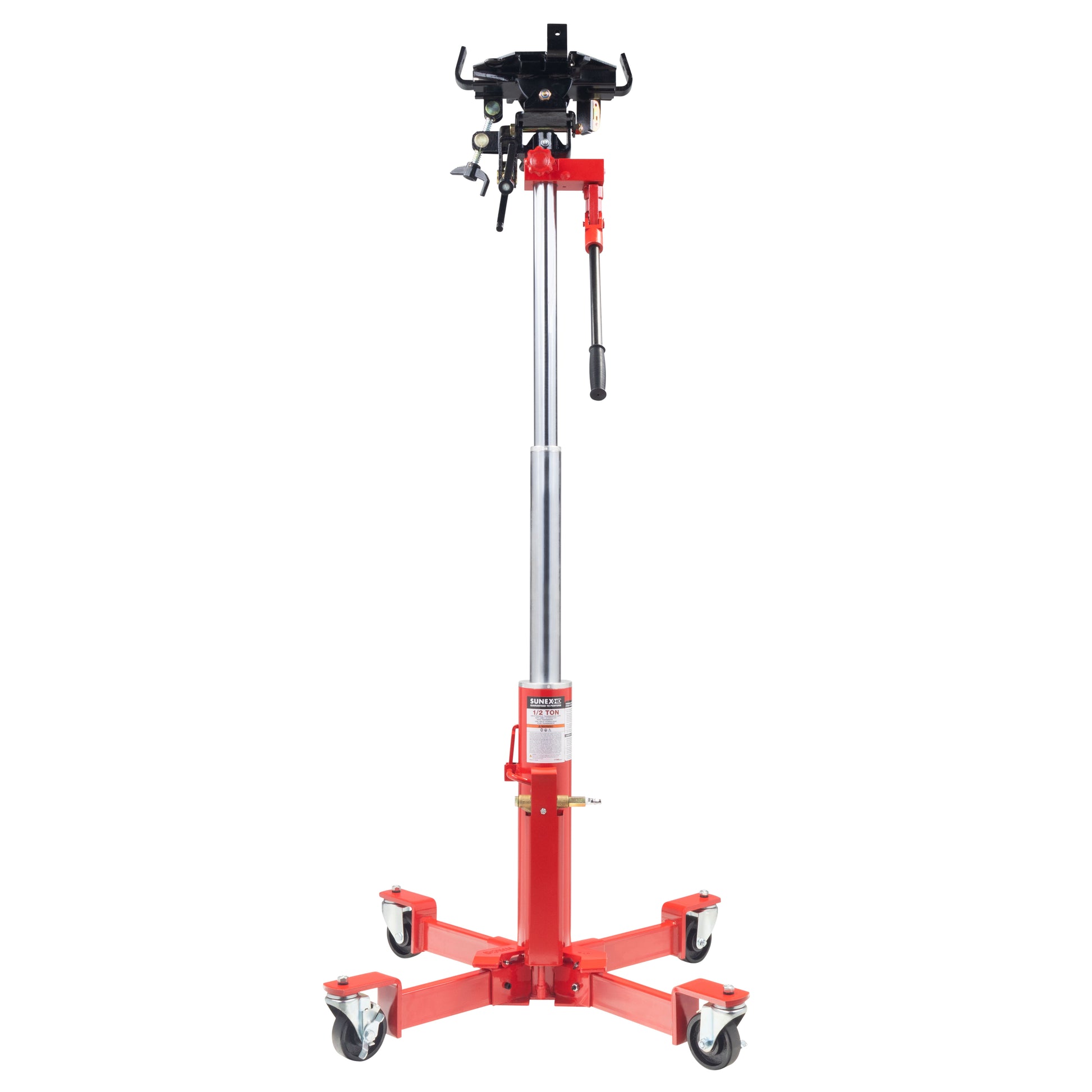

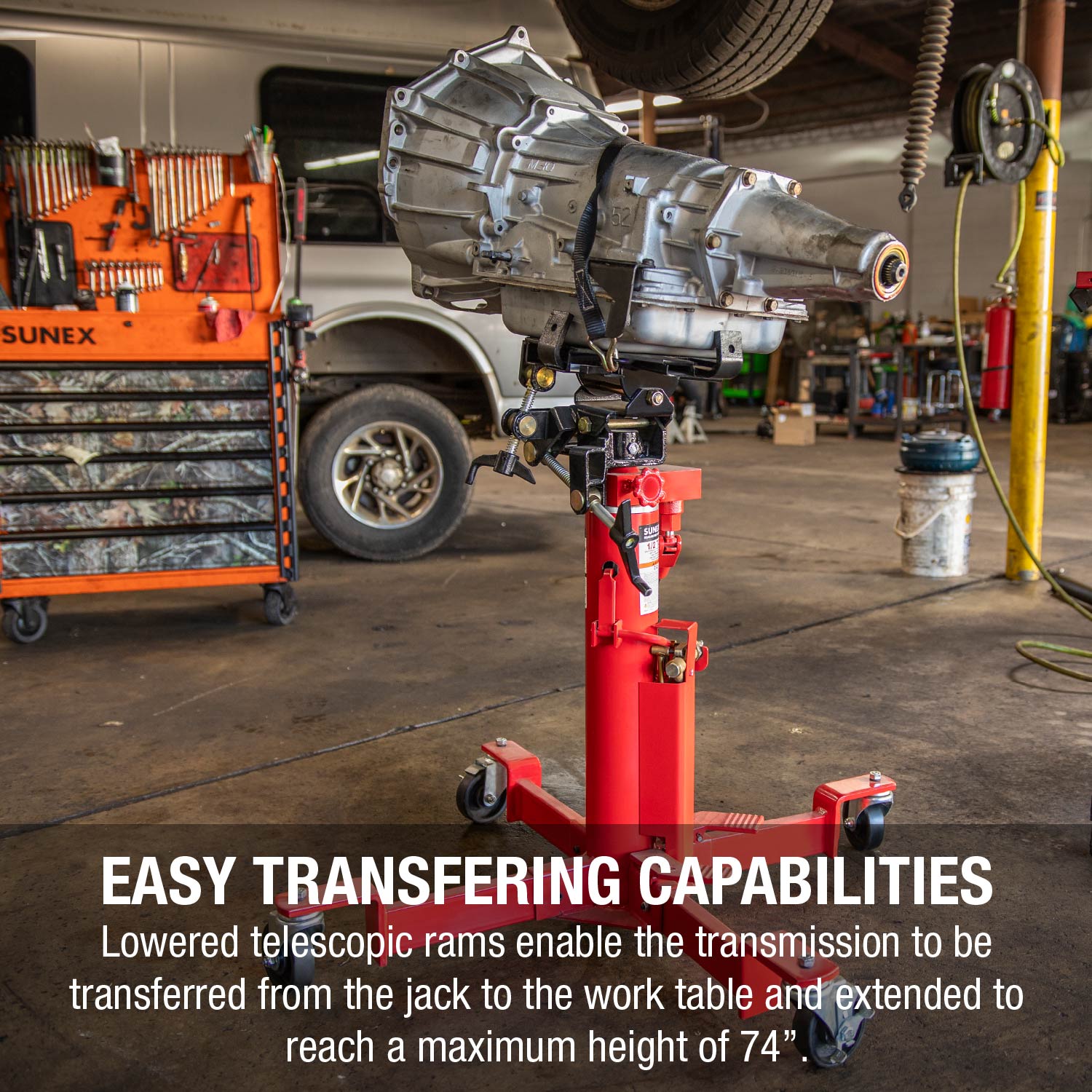

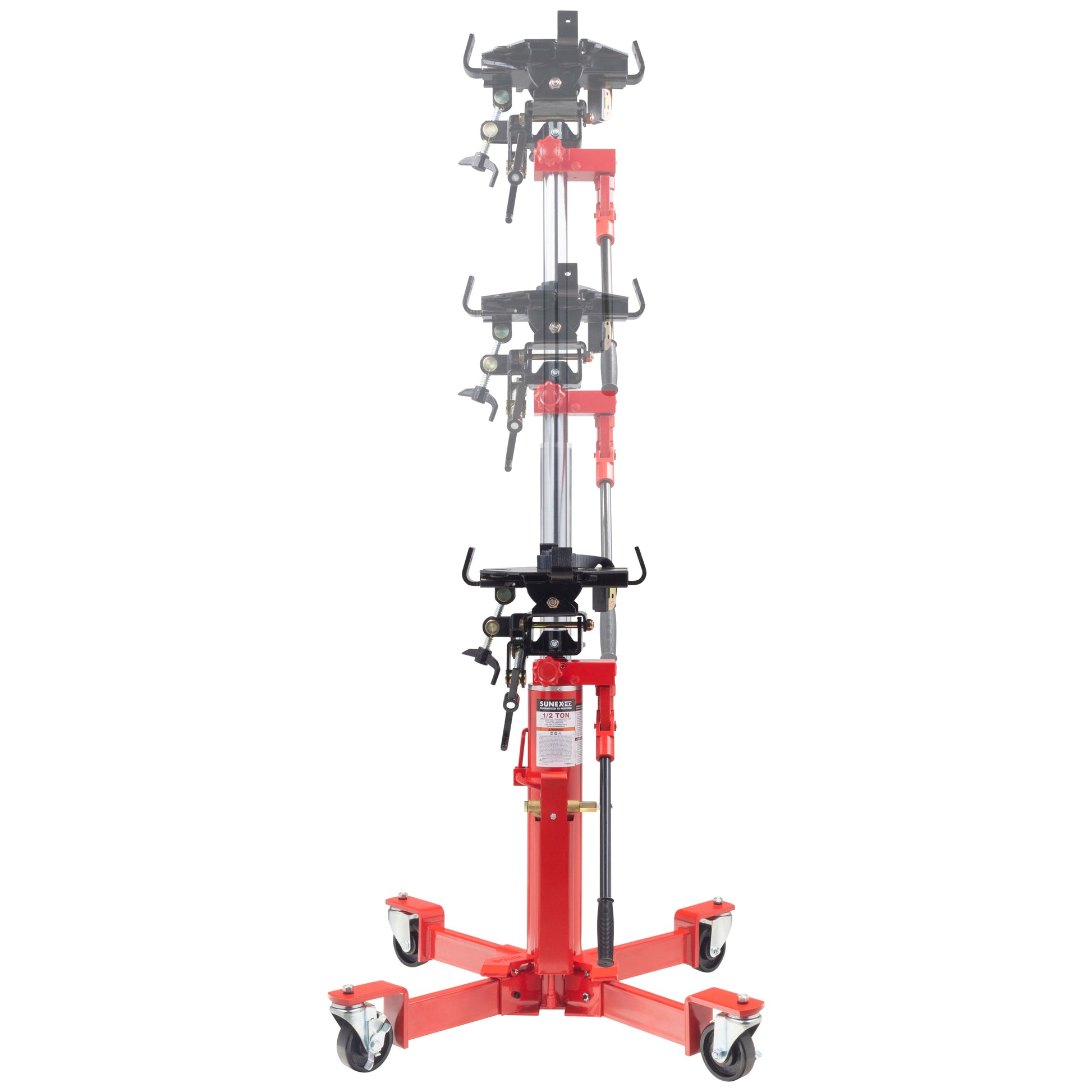

  • Height Range: 35 in. low height and 73.5 in. raised height support transmission service and positioning

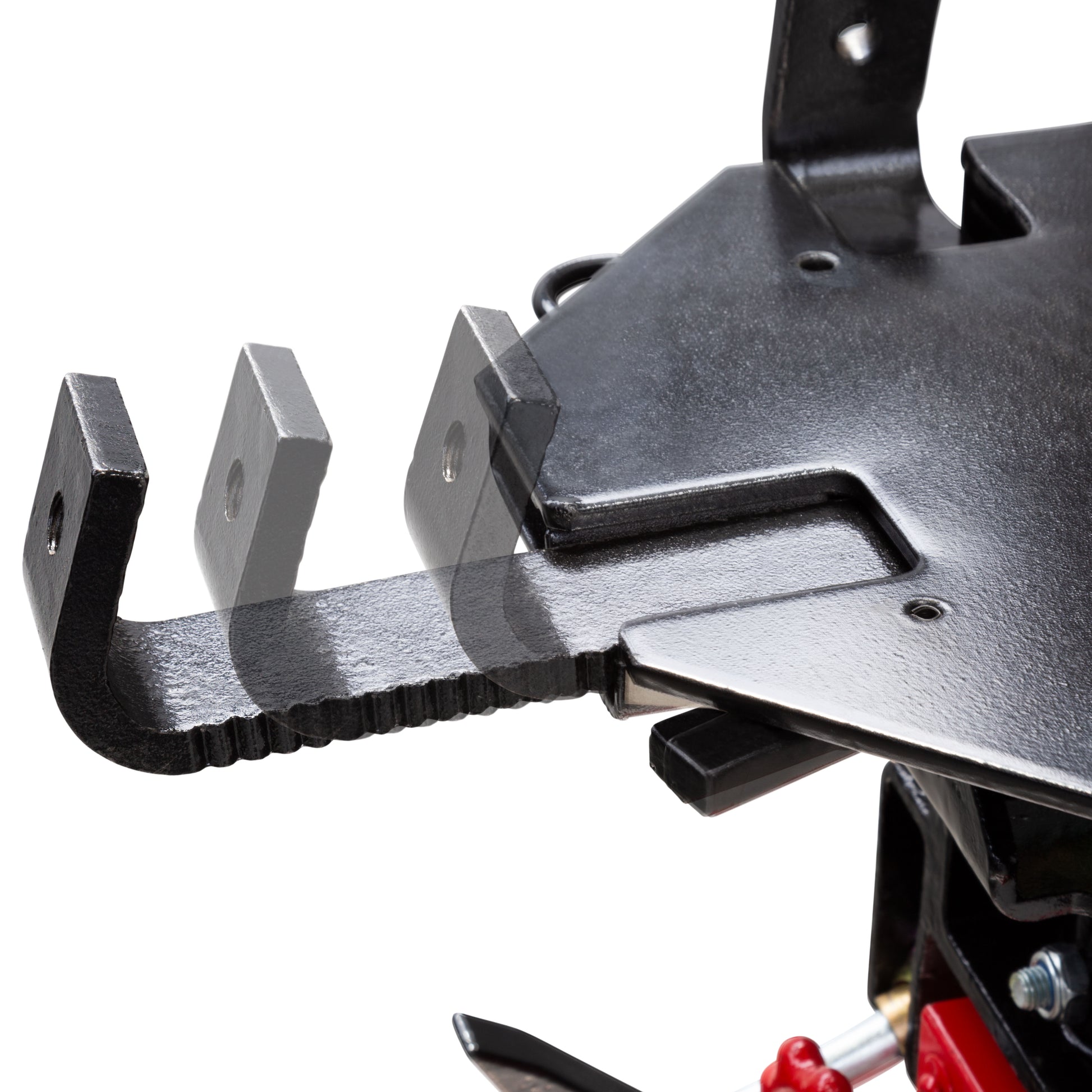

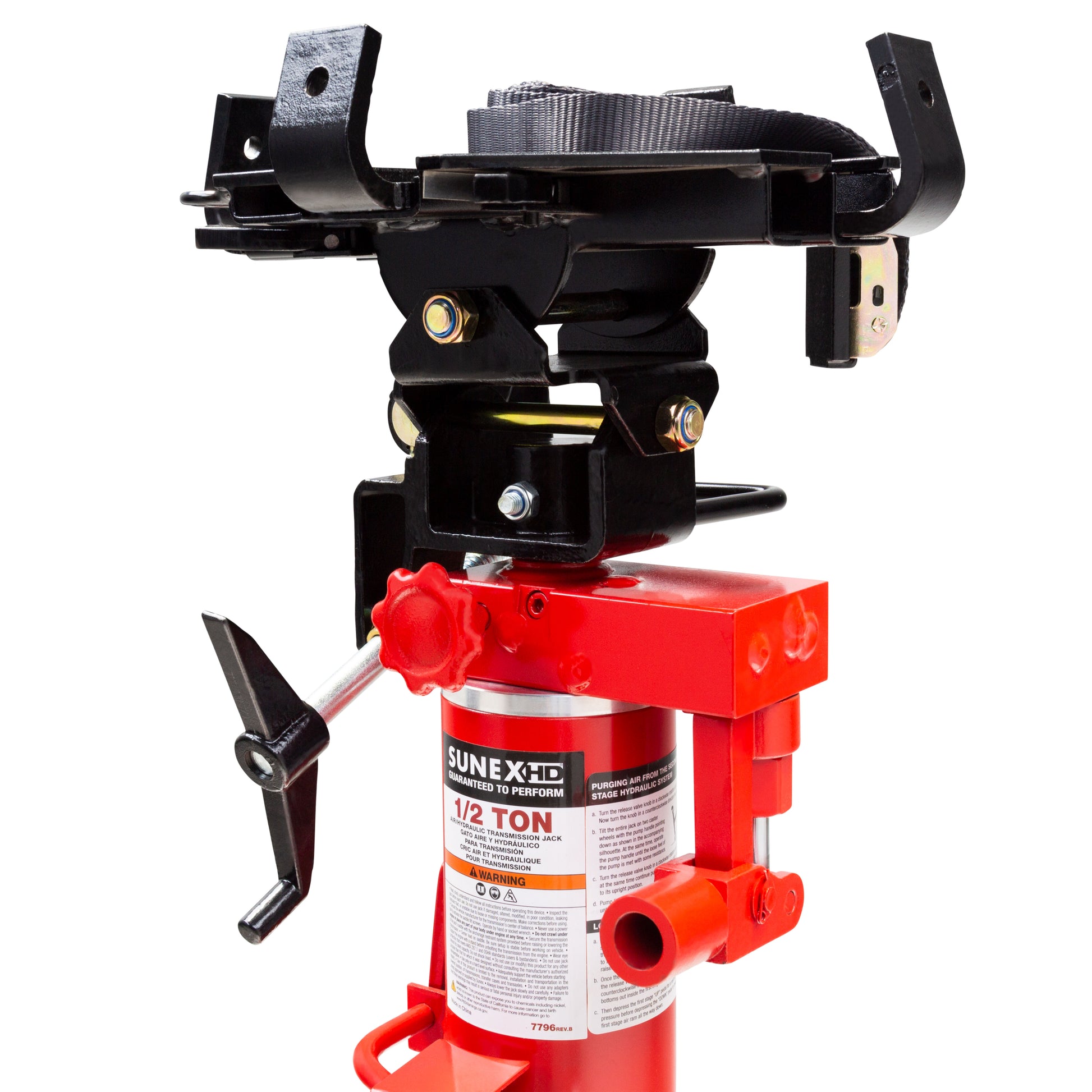

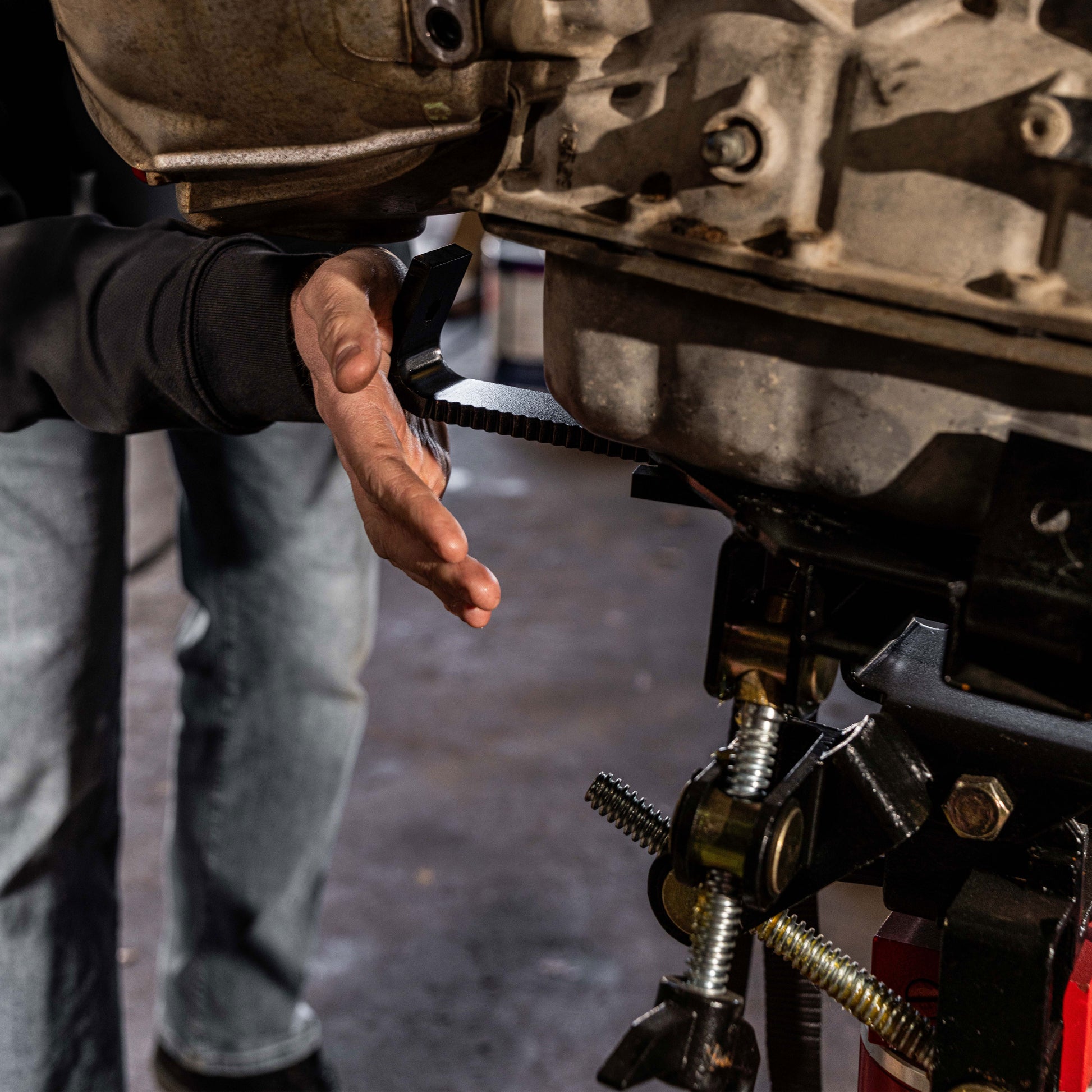

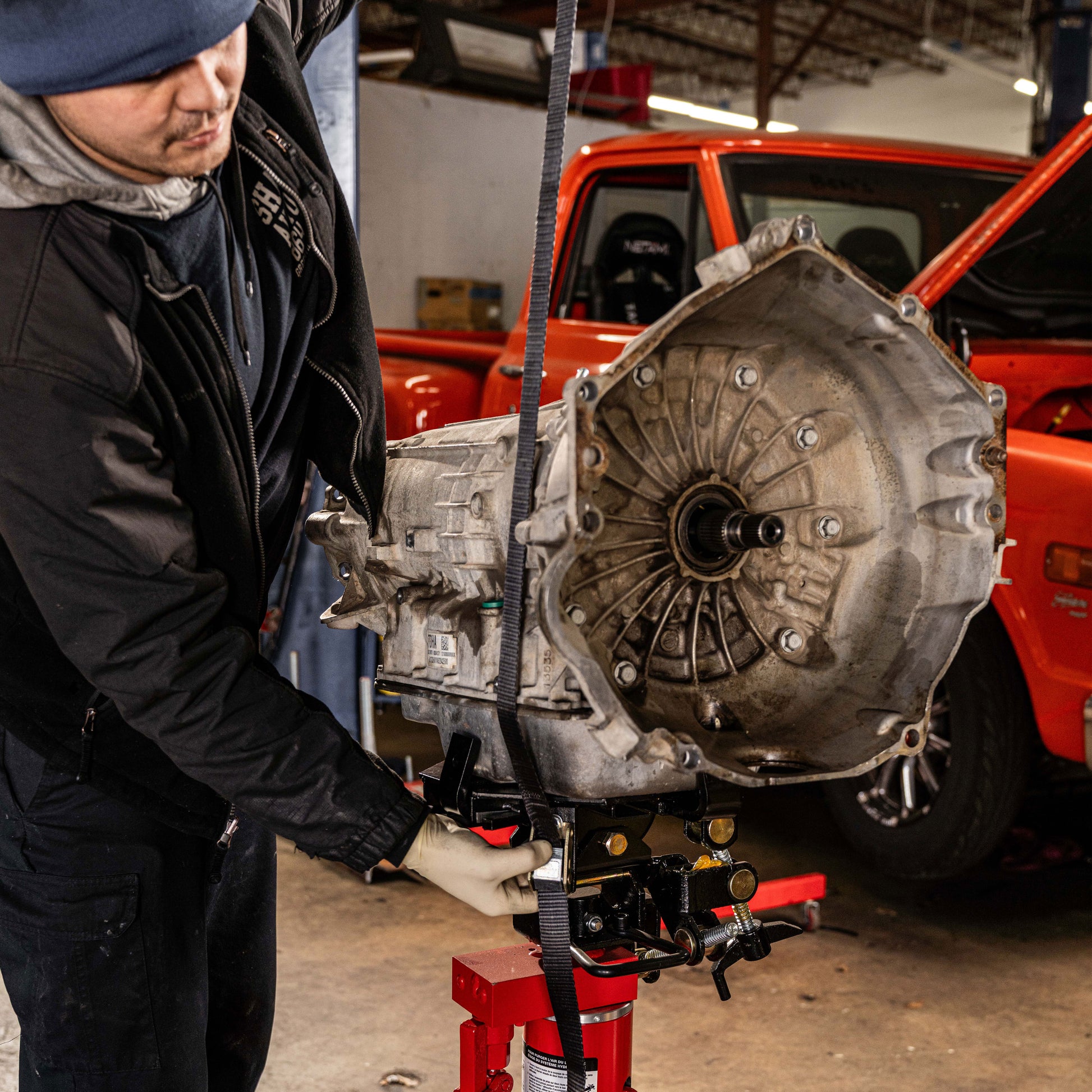

  • Saddle Configuration: Four ratcheting saddle arms adjust to fit the transmission oil pan mounting flange

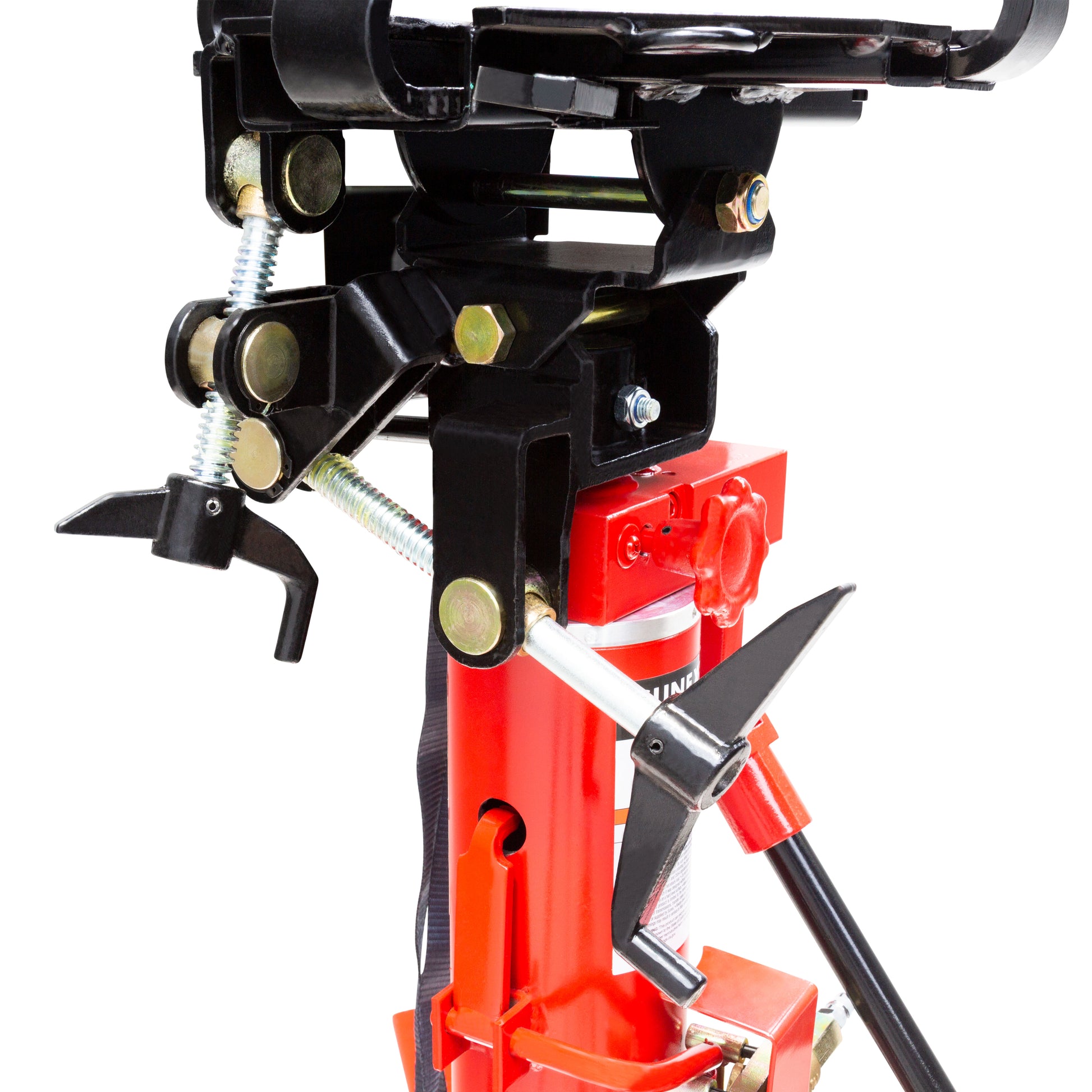

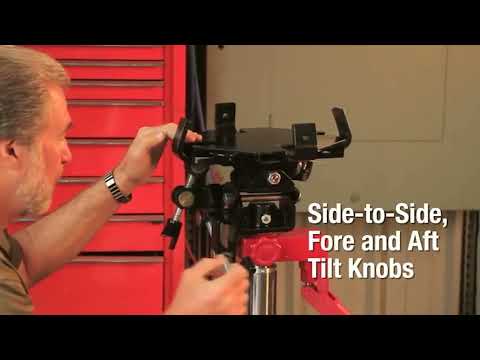

  • Tilt Control: Saddle tilts 37 degrees forward, 26 degrees backward, and 12 degrees left and right for alignment during service
More information

Specifications

Color
Red
High height
73.5 in
Load capacity
1000 Lbs
Long benefits
  • Capacity: 1,000 lb. load capacity supports transmission removal and installation
  • Height Range: 35 in. low height and 73.5 in. raised height support transmission service and positioning

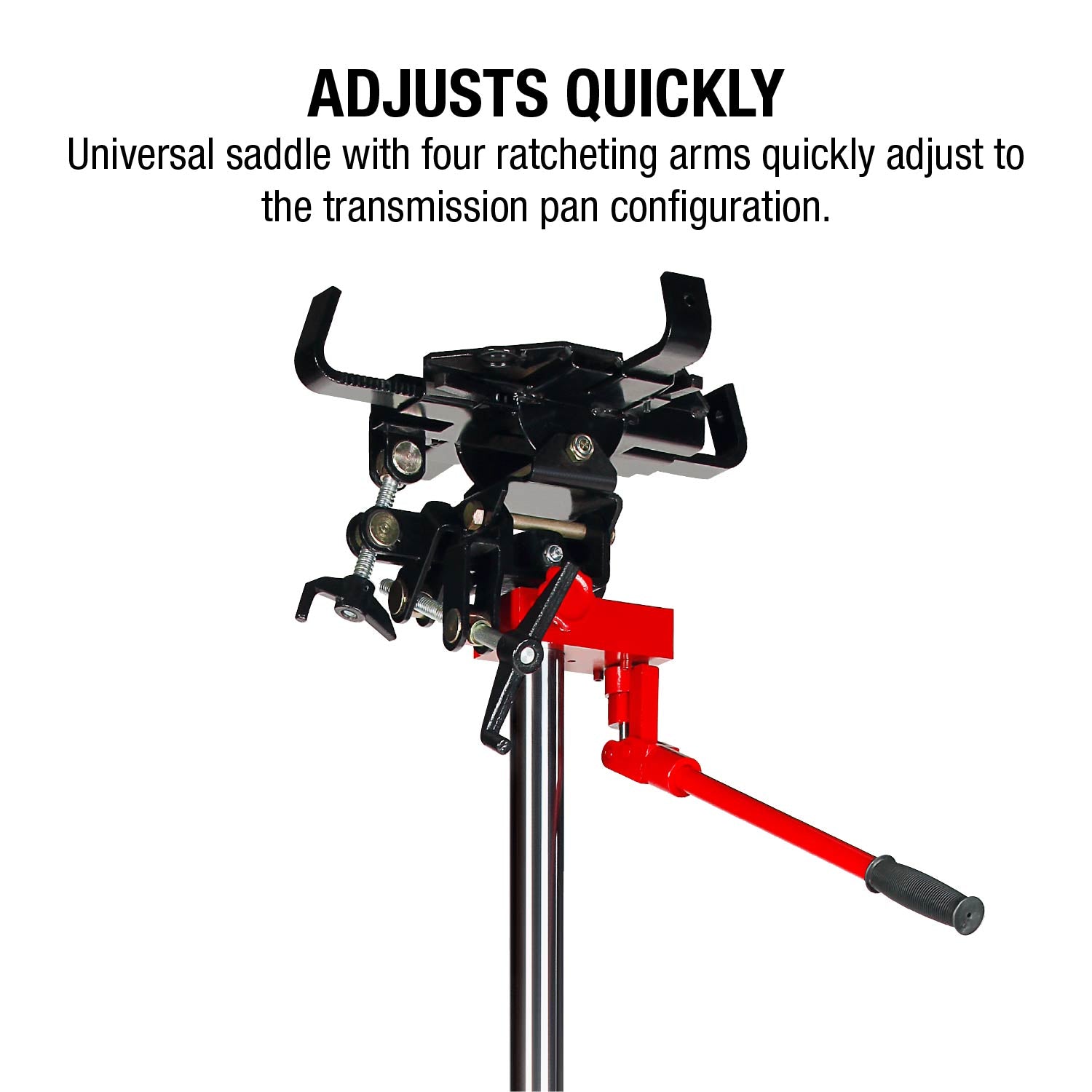

  • Saddle Configuration: Four ratcheting saddle arms adjust to fit the transmission oil pan mounting flange
  • Tilt Control: Saddle tilts 37 degrees forward, 26 degrees backward, and 12 degrees left and right for alignment during service

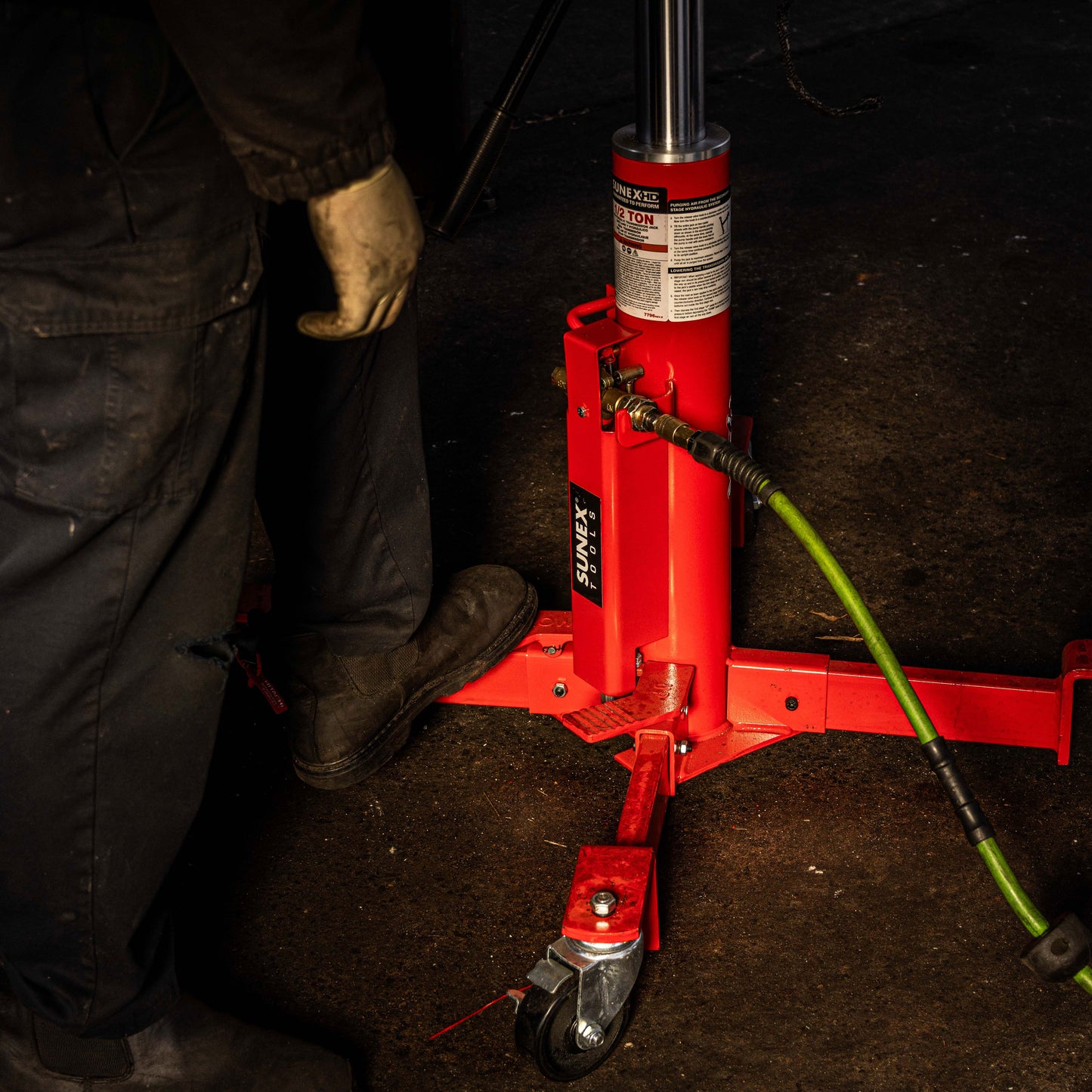

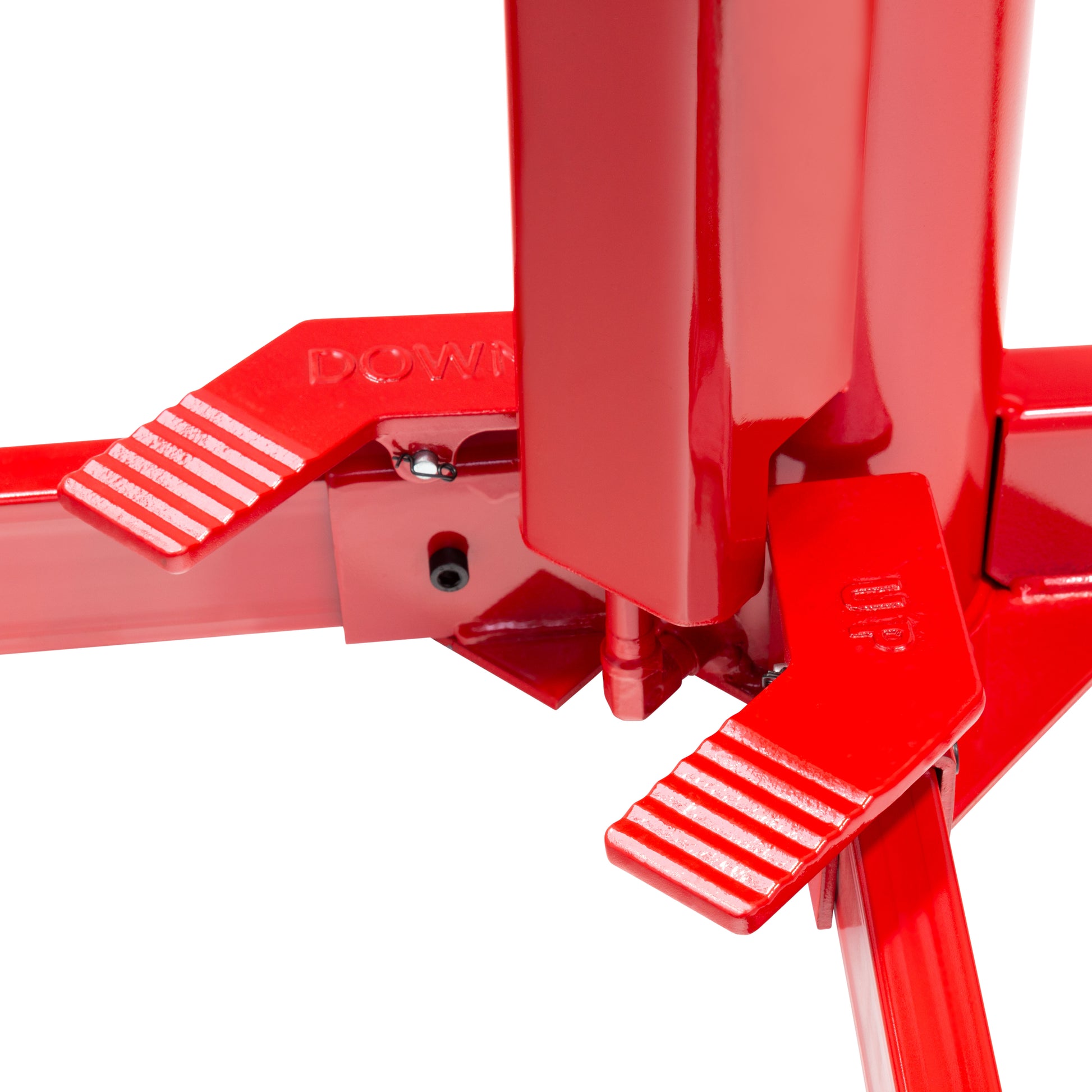

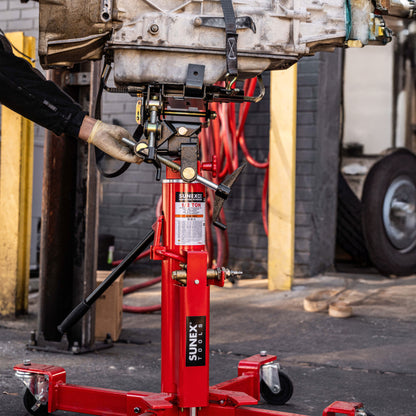

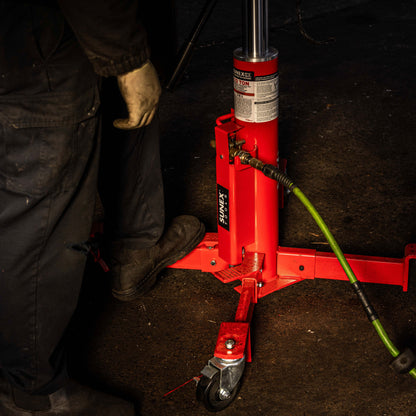

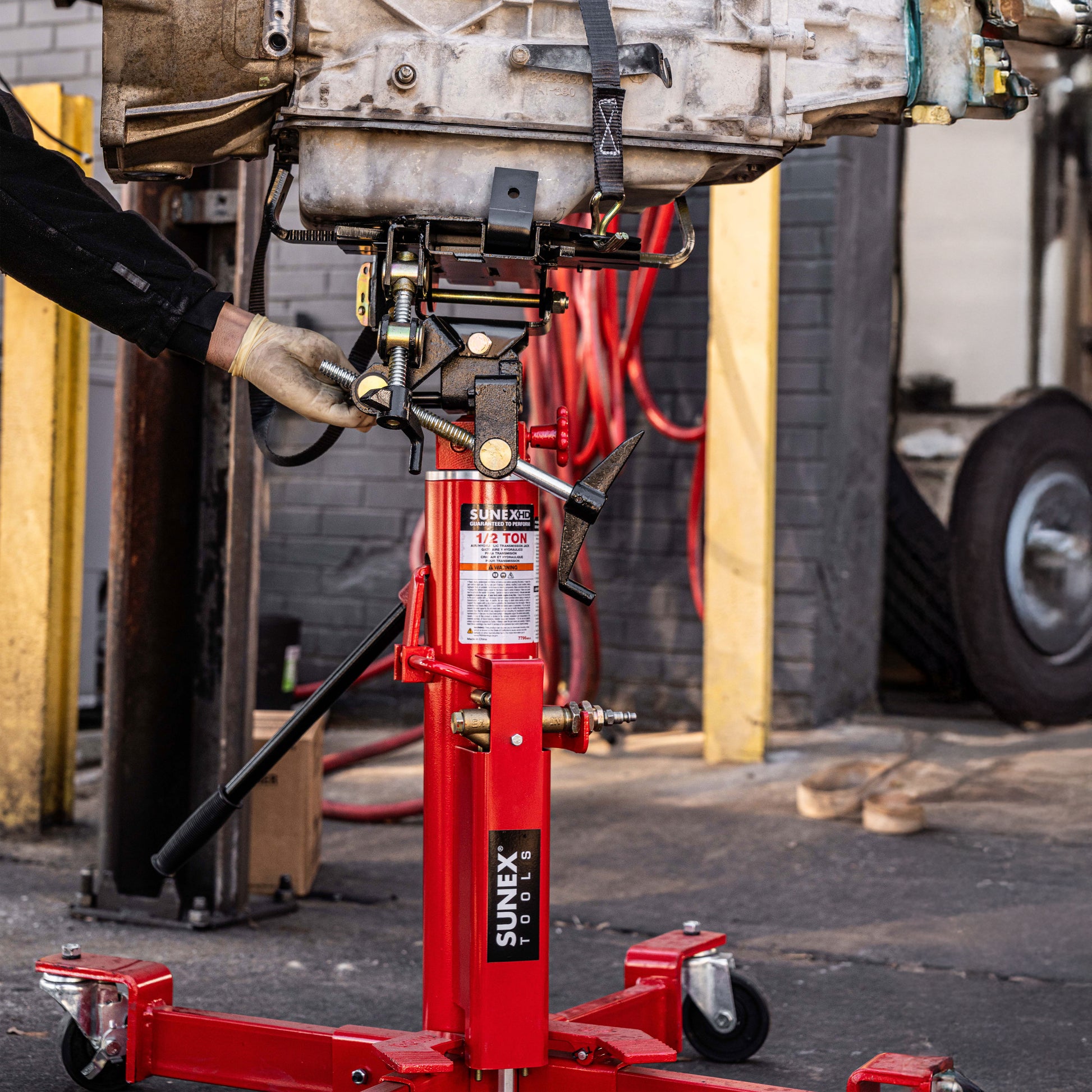

  • Lifting Operation: Foot pedal raises the air-activated first stage and the pump handle raises the hydraulic second stage

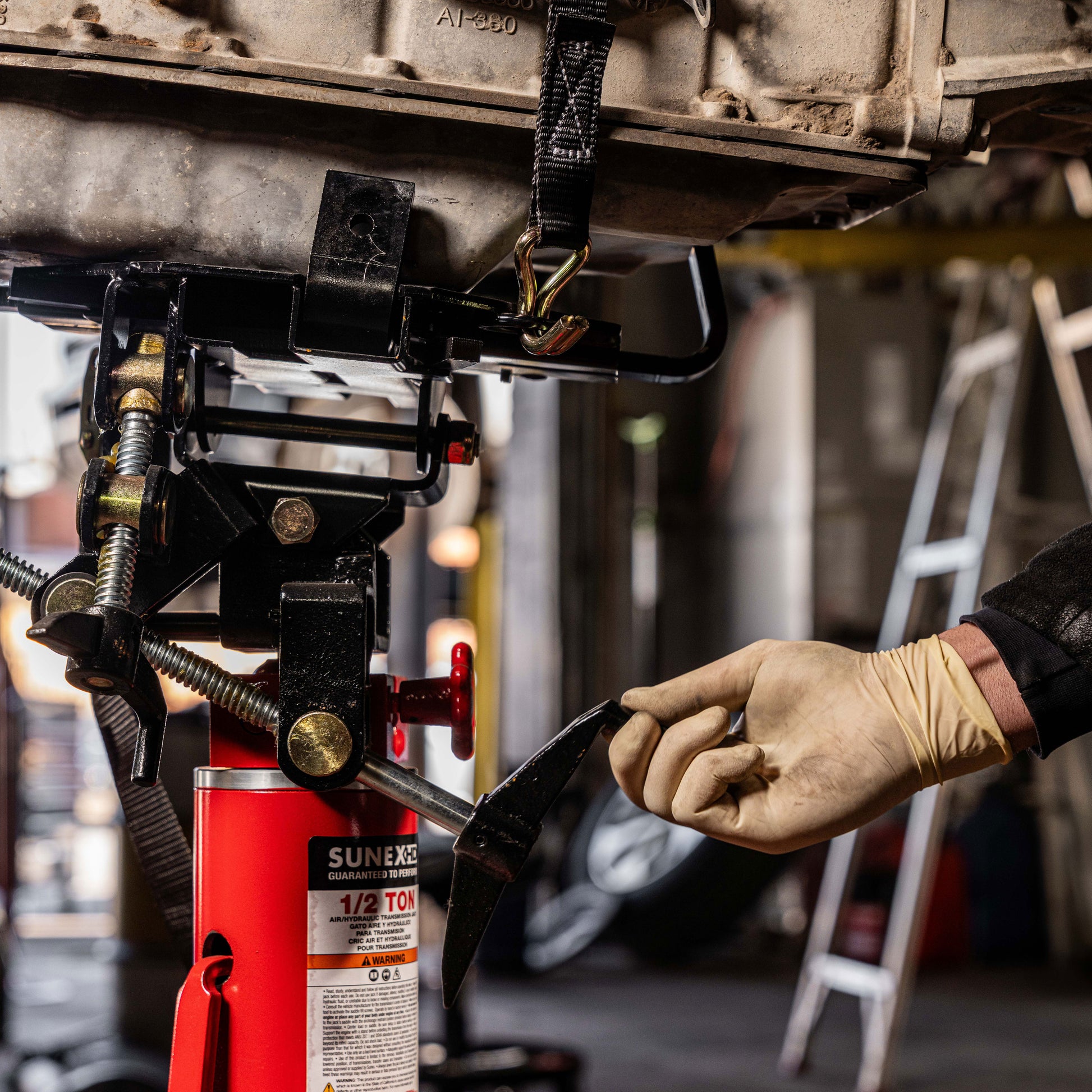

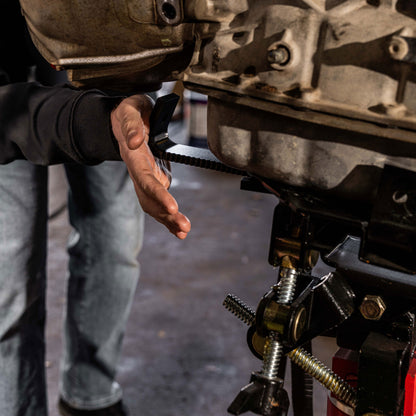

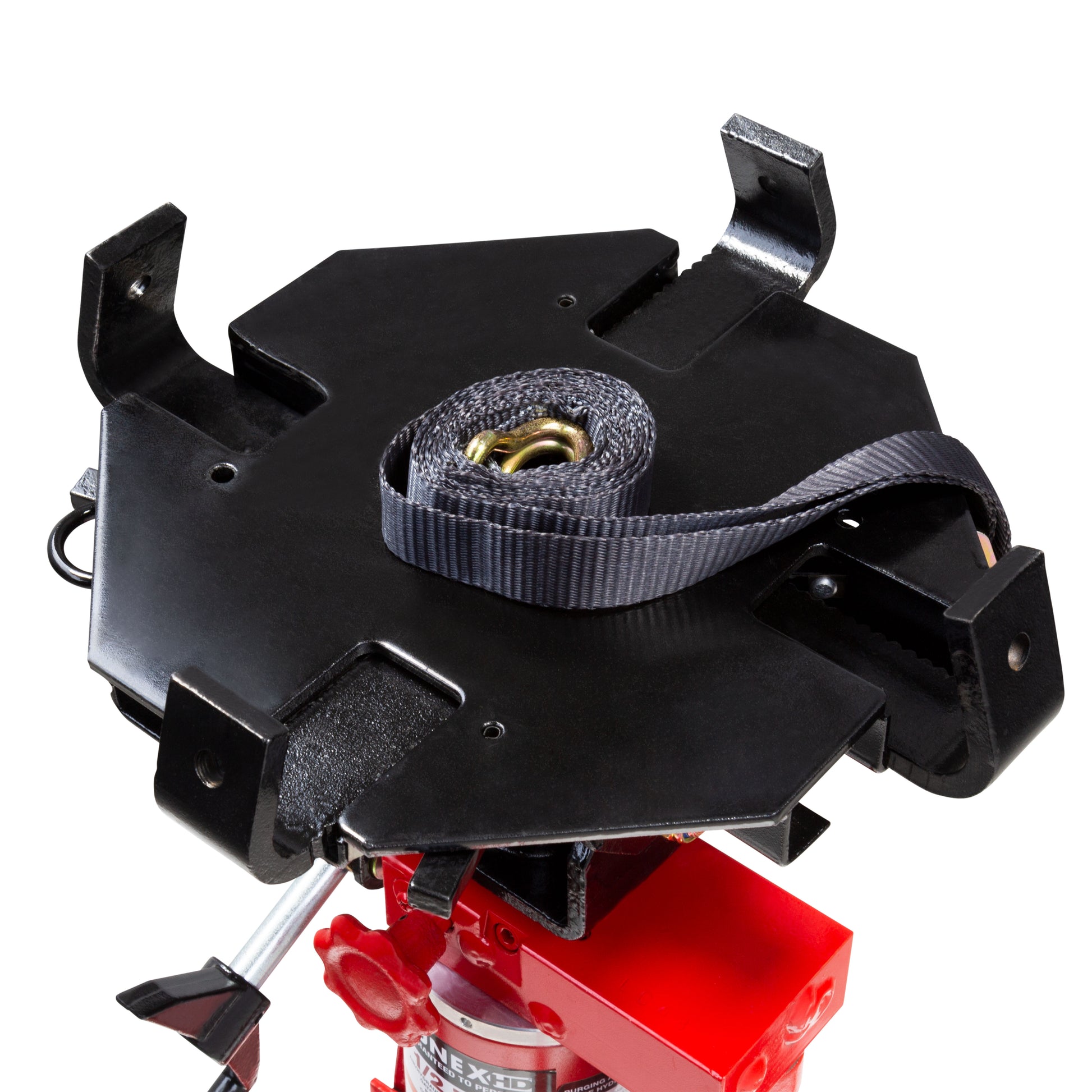

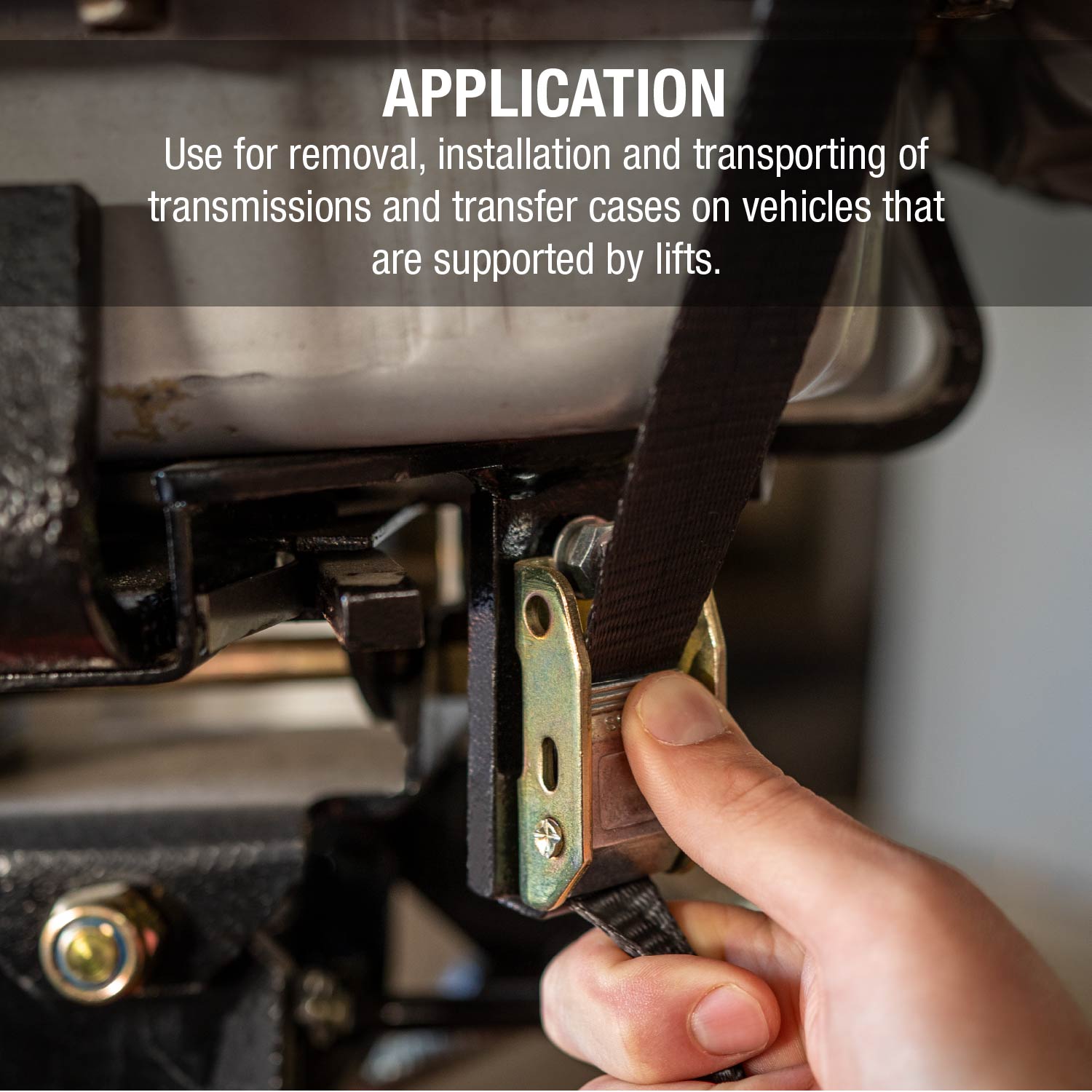

  • Load Restraint: Tie-down strap secures the load to the saddle before raising or lowering
  • Base Size: 30.25 in. square base supports stable positioning during transmission service

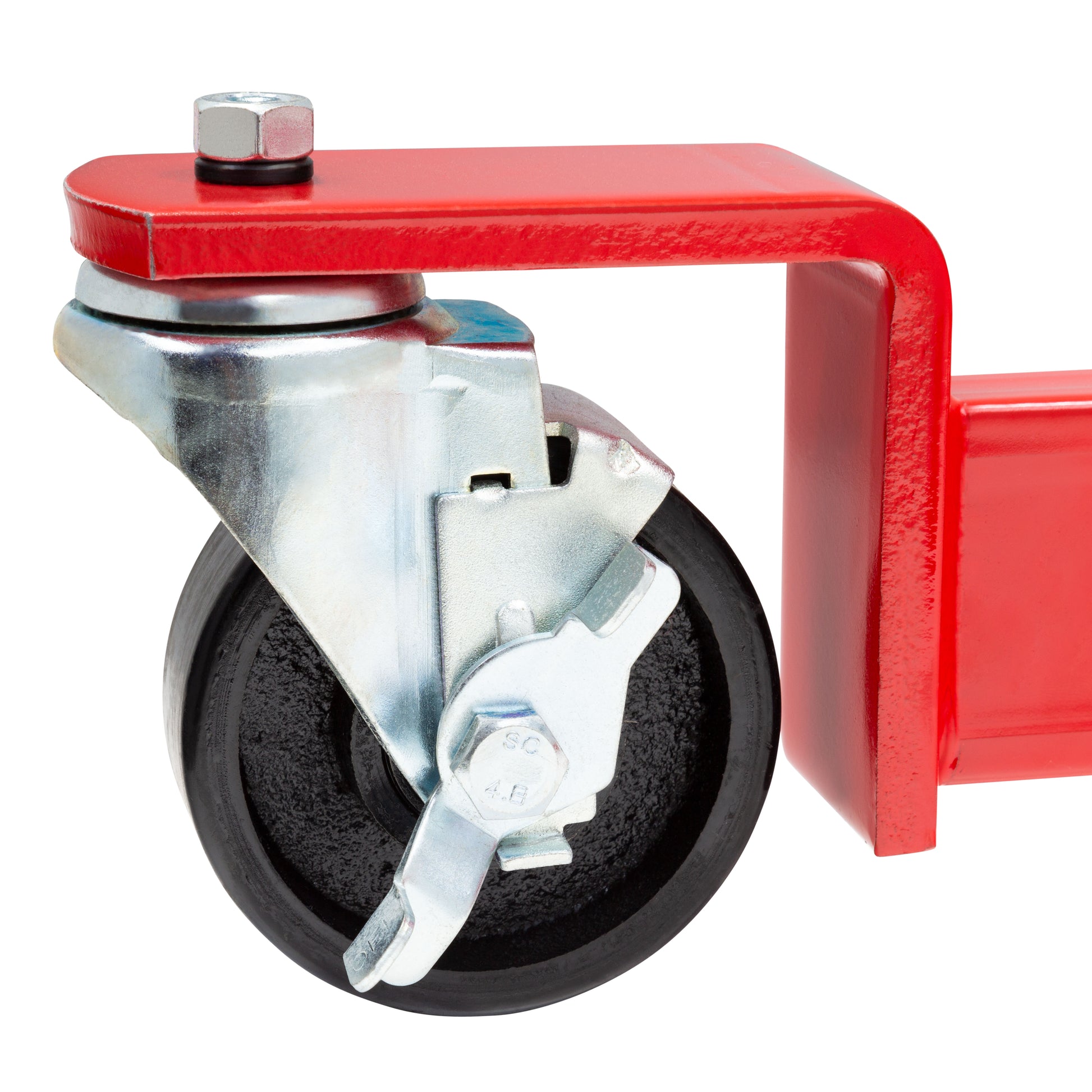

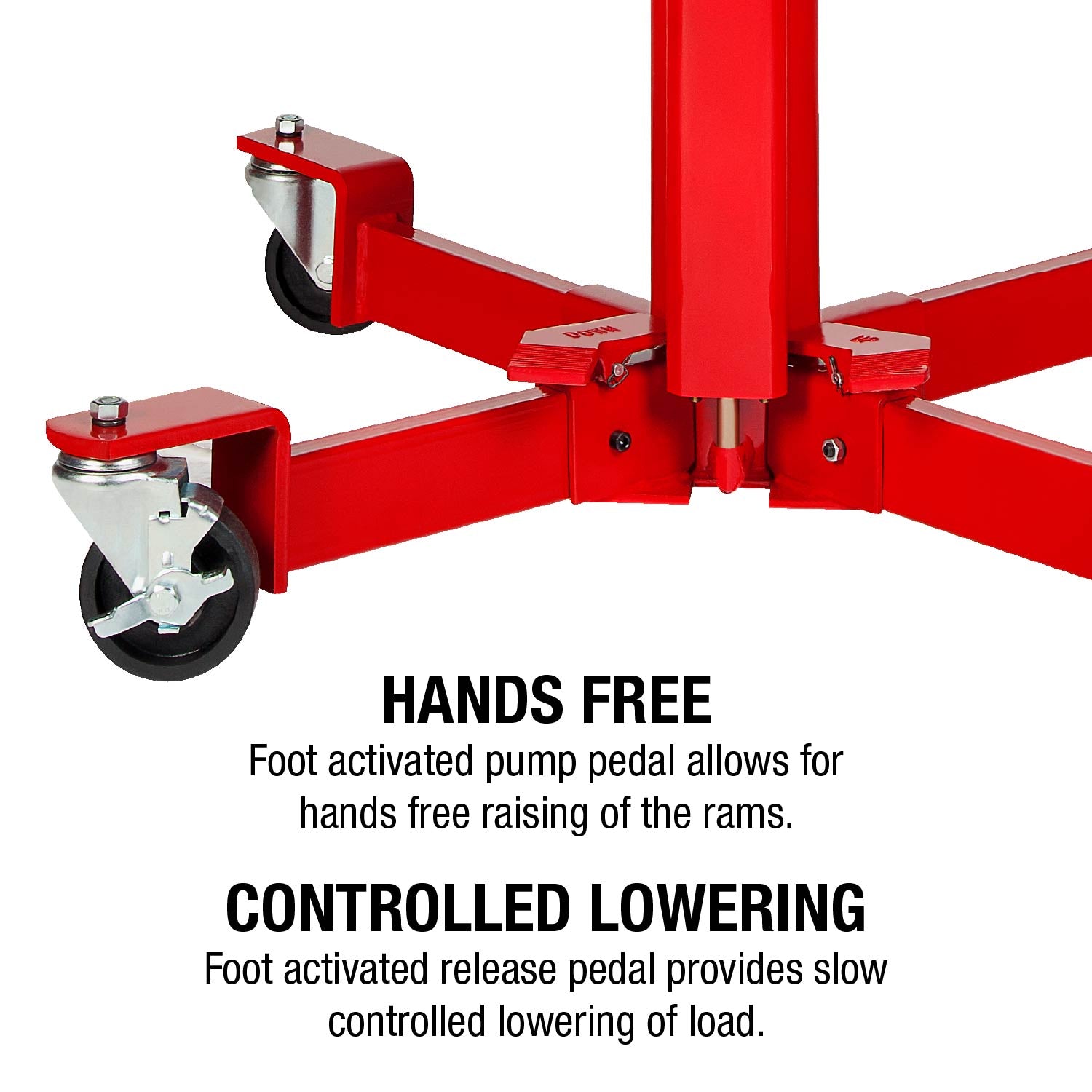

  • Caster Configuration: Swivel casters, including locking casters, support shop positioning and stability

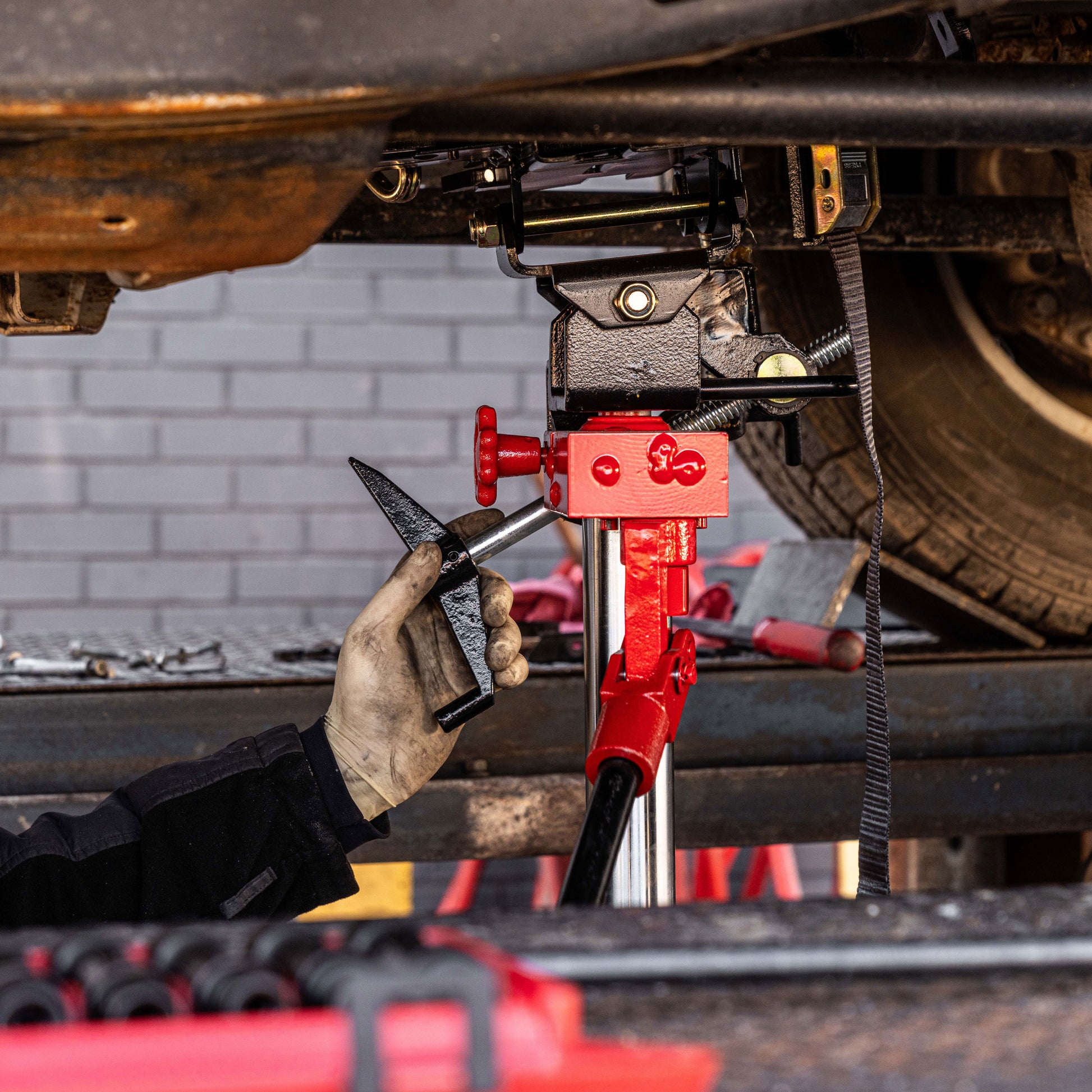

  • Operating Detail: Release valve knob supports controlled lowering, and shop air should be regulated to 100 psig for the primary air-activated stage
Low height
35 in
Material
Metal
Product description long

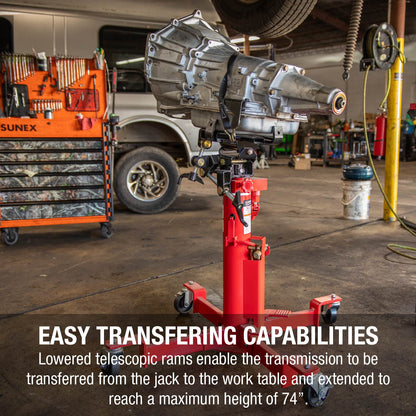

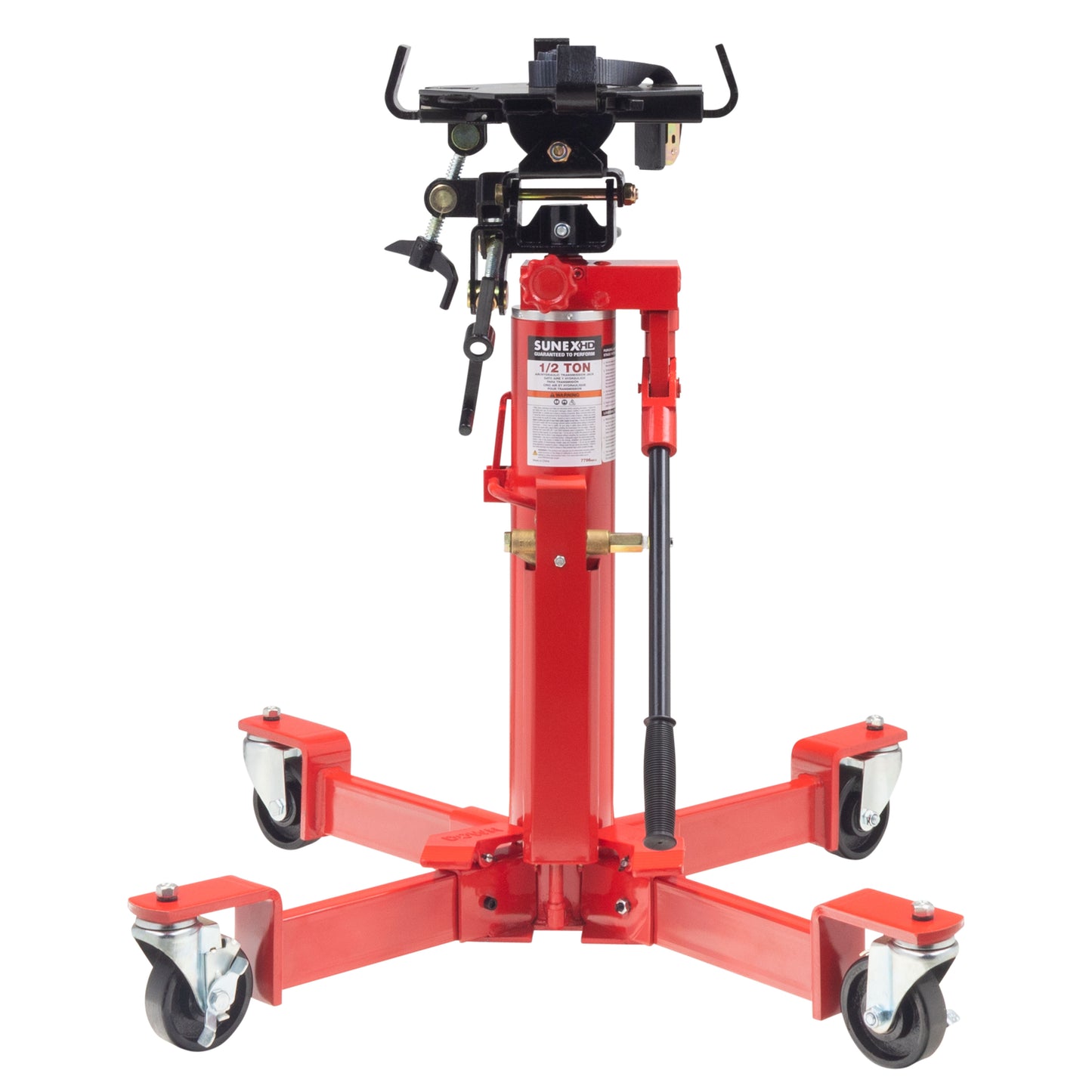

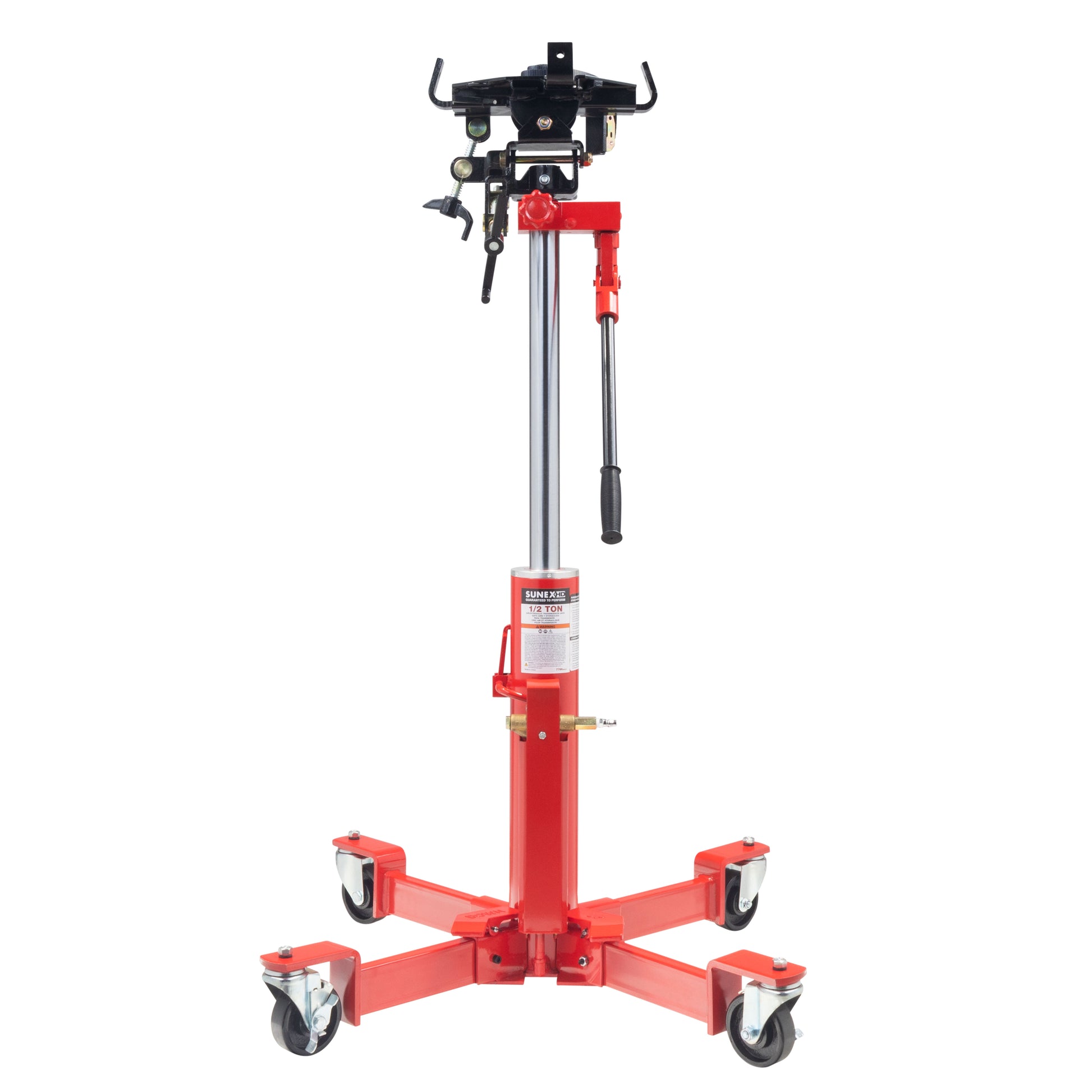

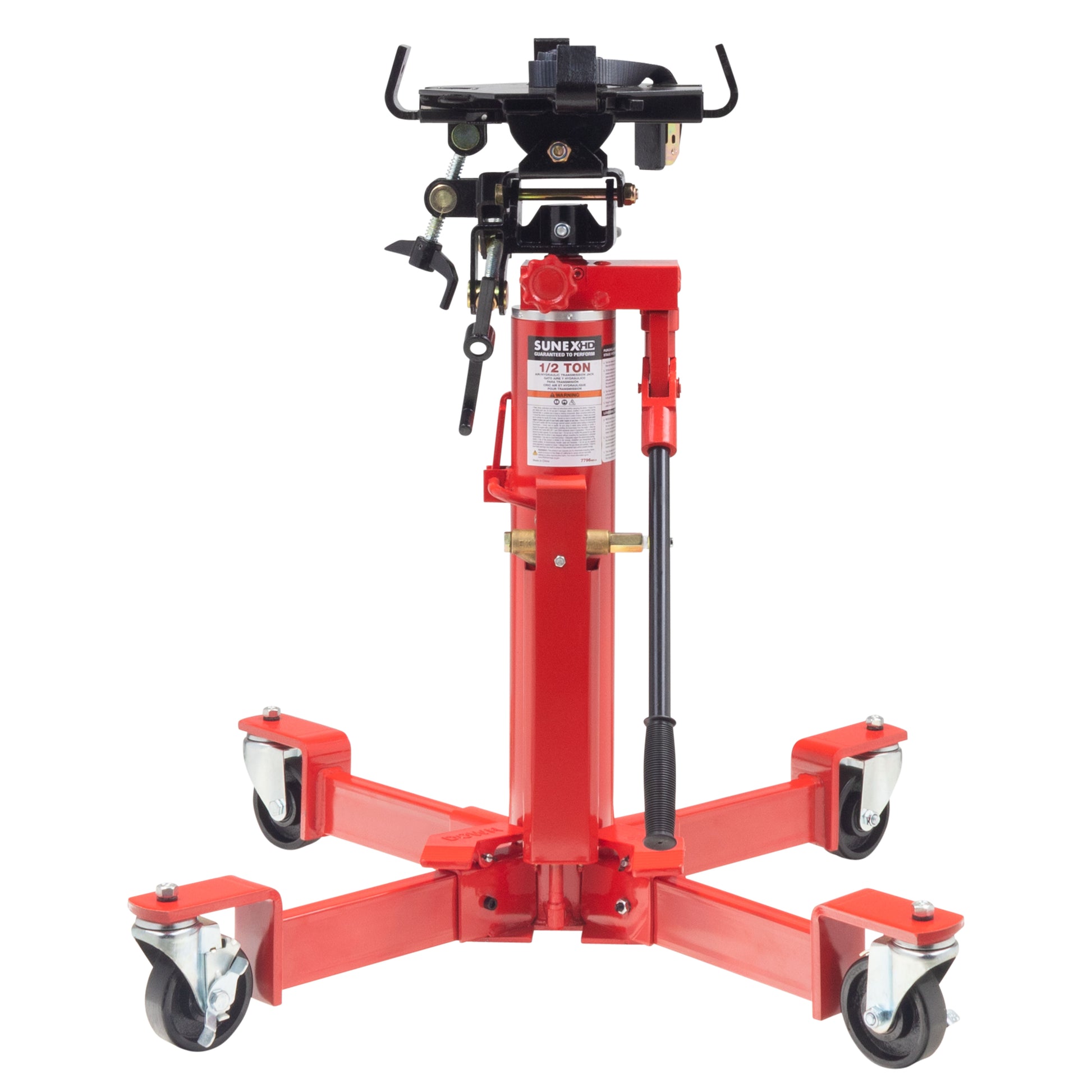

  • The SUNEX Tools 7796 is a 1,000 lb. air and hydraulic telescopic transmission jack for removal, installation, and transportation in the lowered position of transmissions, transfer cases, and transaxles. It provides a 35 in. low height and 73.5 in. raised height. Four ratcheting saddle arms adjust to fit the mounting flange around the transmission oil pan, and the saddle tilts 37 degrees forward, 26 degrees backward, and 12 degrees left and right for alignment during service. Dual power operation uses an air-activated first stage controlled by a foot pedal and a hydraulic second stage raised with the pump handle. An anchorage restraint system secures the load to the saddle, and the release valve knob is used for controlled lowering. The jack uses a 30.25 in. square base with four swivel casters, including locking casters, and requires 100 psig shop air. Backed by a 1 Year warranty.
Saddle length
20 in
Saddle width
20 in
Tilt capacity front
37 °
Tilt capacity rear
26 °
Tilt capacity side
12 °
Upc
613364088791

Videos

Assets

Download the product manual

Download the digital assets

Warranty

This product is backed by a 1 year warranty.
